Field Bins & Grain Silo's

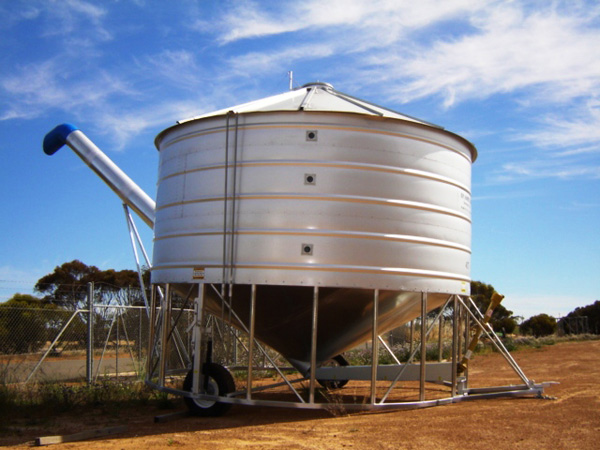

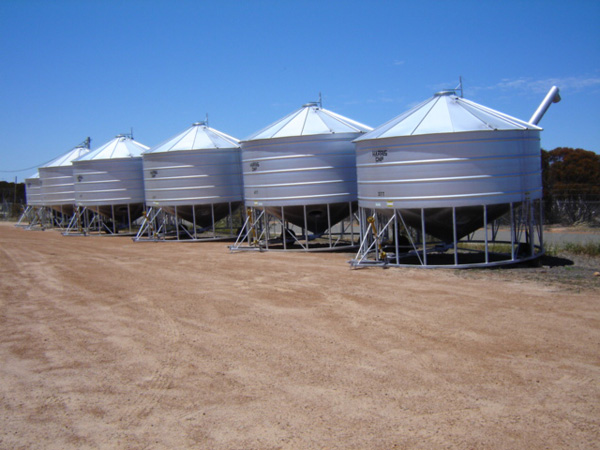

Field Bins
Remote Centre Caps
All Field Bins are manufactured with cable remote centre fill caps. All cables & pulleys used are stainless steel.
Materials
High strength aviation rivets are used in conjunction with high tensile zincalume walls, making for a strong reliable structure.
Cone Base
The cone bases are fully welded for optimum strength. All base materials used are galvanised.
Other Features
- Manhole in base
- Sight Glasses
- Spring assisted easy lift handles (adjustable)
- Collapsible draw bar for PTO operation on Auger bins
- 37 - 45 Tonne Field bins are 4.9 metres in diameter (16ft)
All Field Bins include:
- 13'' and 15'' Auger option on all bins
- 15'' Auger with optional choke
- 2 x Double Opening Doors
- 500mm Centre Fill
- Discharge auger measures 4215 (13'10") under the chute
- Optional Extra: Hydraulic Lift
Field Bin Sizes
Various sizes available :
1200 Bushel Hopper Bin
37 Tonne
3430 wall height
Centre fill 4570 from ground level
1200 Bushel Hopper Bin with 13"Auger
37 Tonne
Wall height 3280 (10'7'')
Centre fill 4420 (15'5'') from ground level
1200 Bushel Hopper Bin with 15"Auger
37 Tonne
Wall height 3280 (10'7'')
Centre fill 4420 (14'5'') from ground level
1500 Bushel Field Bin with 13"Auger
45 Tonne
Wall height 3680 (12'0'')
Centre fill 4820 (15'8'') from ground level
1500 Bushel Field Bin with 13"Auger
45 Tonne
Wall height 3680 (12'0'')
Centre fill 4820 (15'8'') from ground level

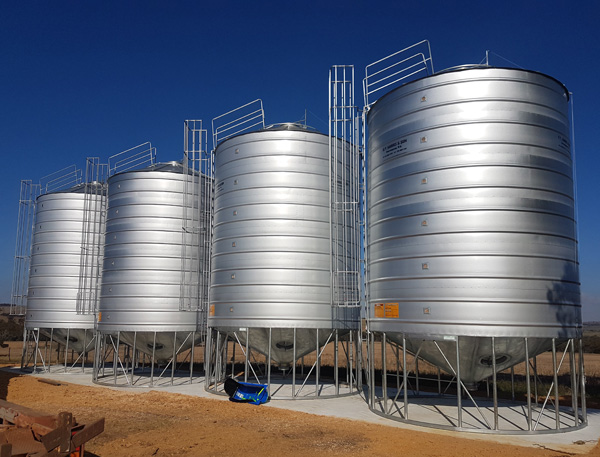

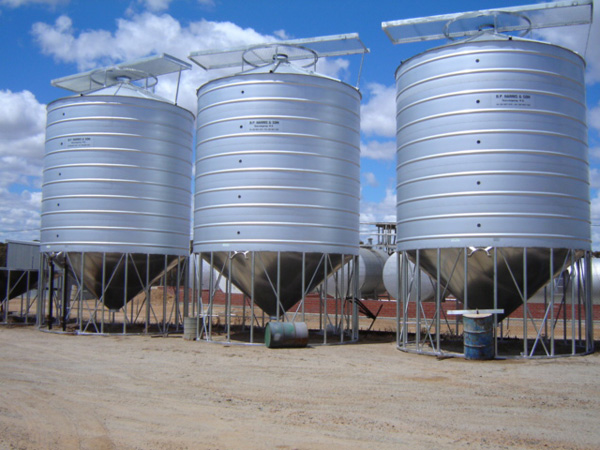

Grain SILO's
Remote Centre Caps
All Silo's are manufactured with cable remote centre fill caps. All cables & pulleys used are stainless steel.
Materials
High strength aviation rivets are utilized in conjunction with high tensile zincalume walls making a strong and reliable structure.
Cone Base
The cone bases are fully welded for optimum strength. All galvanised materials are used in base construction.
Other Features
- Manhole in base
- Sight Glasses
- Cone sits above butterfly valve to assist in operation.
- Child Proof ladder runs the full height of silo.
- Ladder operates at 70 degrees to the silo and retracts to sit against the wall of the silo when not in use.
We deliver within WA (Transport charges do apply)
Silo Sizes
Various sizes available :
170 Bushel(Tonnage 4.75)
Diameter: 2440 (8'0'')
Height : 2800 (9'0'')
300 Bushel(Tonnage 8.1)
Diameter: 2440 (8'0'')
Height : 3700 (12'0'')
460 Bushel(Tonnage 11)
Diameter : 3050 (10'0'')
Height : 3700 (12'0'')
540 Bushel(Tonnage 14.5)
Diameter : 2800 (9'2'')
Height : 4600 (15'0'')
650 Bushel(Tonnage 17.5)
Diameter : 3050 (10'0'')
Height : 4900 (16'0'')
950 Bushel(Tonnage 25.0)
Diameter : 3660 (12'0'')
Height : 5200 (17'0'')
815 Bushel(Tonnage 22.5)
Diameter : 3660 (12'0'')
Height : 5800 (19'0'')
Auger required 34'
1150 Bushel (Tonnage 32.0)
Diameter : 3660 (12'0'')
Height : 6100 (20'0'')
Auger required : 34'
1550 Bushel(Tonnage 41.0)
Diameter : 4300 (14'0'')
Height : 5800 (19'0'')
Auger required : 34'
1800 Bushel(Tonnage 50.0)
Diameter : 4400 (14'7'')
Height : 5900 (19'3'')
Auger required : 36'
2200 Bushel(Tonnage 60.0)
Diameter : 4400 (14'7'')
Height : 5800 ('22'0'')
Auger required : 36'-40'
2600 Bushel(Tonnage 70.0)
Diameter : 4400 (14'7'')
Height : 7700 ('25'0'')
Auger required : 43'-45'
All Field Bins and Silo's comply with Occupational Health and Safety Guidelines
Contact Us
Order Information
For prices and more information, give us a call, send us an email, visit our Facebook page, or come and see us today!
Don't forget - We can customize these products to suit your requirements!
